Cartridge Oil Filter Replacement: Missteps to Watch For

January 14, 2022 / in Cartridge Oil Filters, Oil Filters

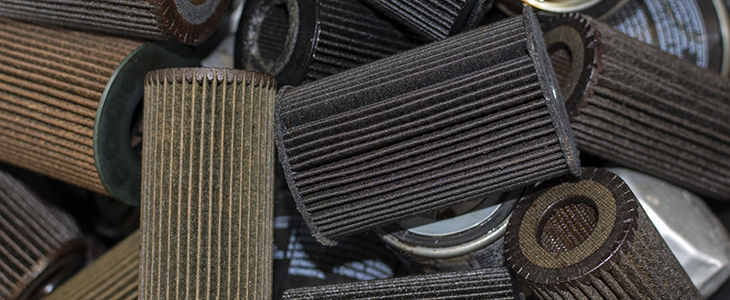

Cartridge oil filters are everywhere! Their use in modern vehicles was once strictly European– commonly found in BMW, VW, Audi, and Mercedes-Benz cars. Fast-forward to 2022 and you’ll find them used in several United States domestic and Japanese domestic makes and models as well. While there are still holdouts, many automakers have transitioned to cartridge oil filters for a variety of applications. Ford’s turbocharged 2.7L and 3.0L engines are good examples. Chrysler’s Pentastar V6 is another notable example that uses a cartridge oil filter. Even Toyota has joined the cartridge filter party.

Cartridge Oil Filter Market Continues to Grow

There are a variety of reasons for the resurgence of cartridge oil filters, which we’ve discussed in the past but in short, they all come back to climate fears. Many believe that this is because a filter made without metal is more environmentally friendly when disposed of. While that’s true and is certainly a part of the equation, the big picture is more complex. The major reason for the shift is that cartridge oil filters allow engineers to configure engines differently, helping to solve a variety of problems that aggressive climate legislation has created for efficiency and power output. As climate change comes into greater focus over time, the need for efficient engines and creative design solutions will intensify which subsequently means: more cartridge oil filters. That’s not a bad thing when you consider that they’re usually easier to remove and much less messy than a spin-on canister.

Cartridge Oil Filter Replacement: Common Missteps

Easy removal of cartridge oil filters is a great benefit, but there are pitfalls installers should be aware of.  Some can be very complex, but even the most basic cartridge filters come with multiple components in the box. The extra pieces increase the chance of human error and make cartridge oil filters more prone to installation woes. Here are a few of the most common missteps that installers should try to avoid:

Misplaced O-rings

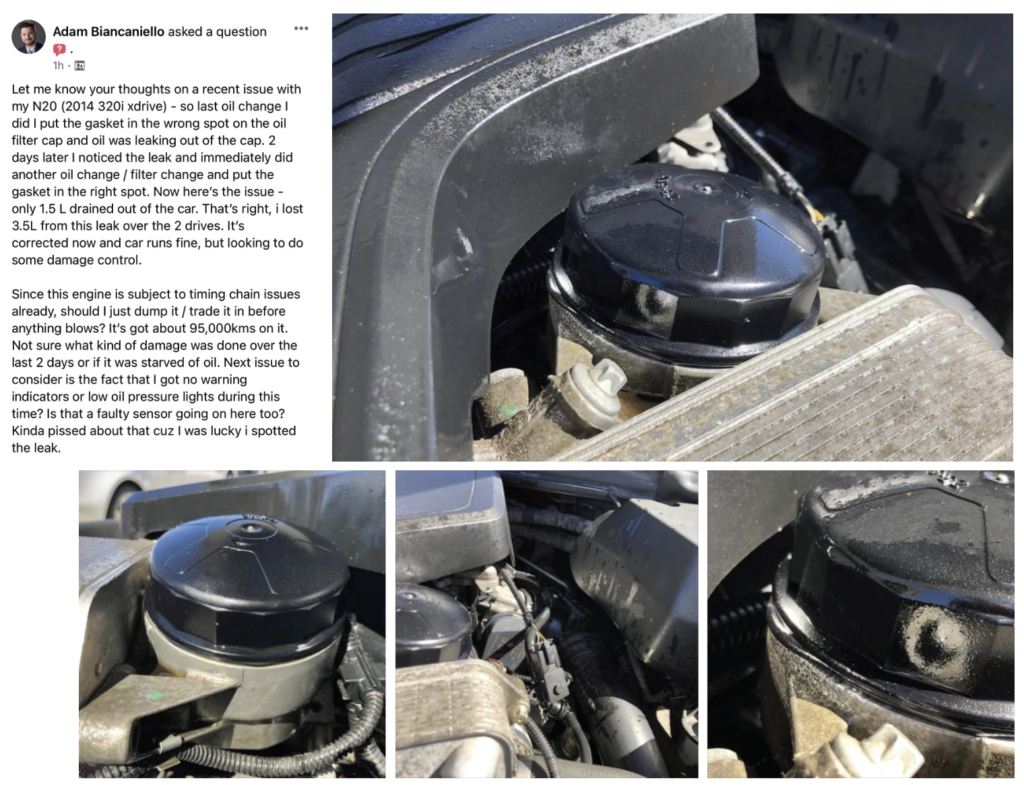

Misplaced O-rings are the most common misstep with cartridge oil filter replacements gone wrong. Most cartridge oil filter kits consist of the filter element and two O-rings– one large and one small. These O-rings need to be replaced with every oil change and there is a specific groove on the oil filter housing cap where the large O-ring is supposed to sit. Sometimes this O-ring is mistakenly placed into one of the cap threads rather than the correct groove. When this happens, the cap doesn’t seal properly with the housing when tightened, allowing oil to seep or spray out when under pressure. In addition to the engine’s mechanical issues that can result from oil starvation or oil pressure fluctuations, this scenario will result in a slick mess in the engine bay and could damage other components depending on the location of the oil filter housing. Always make sure that the O-ring is in the correct groove.

Accidental Removal of the Oil Filter Center Tube

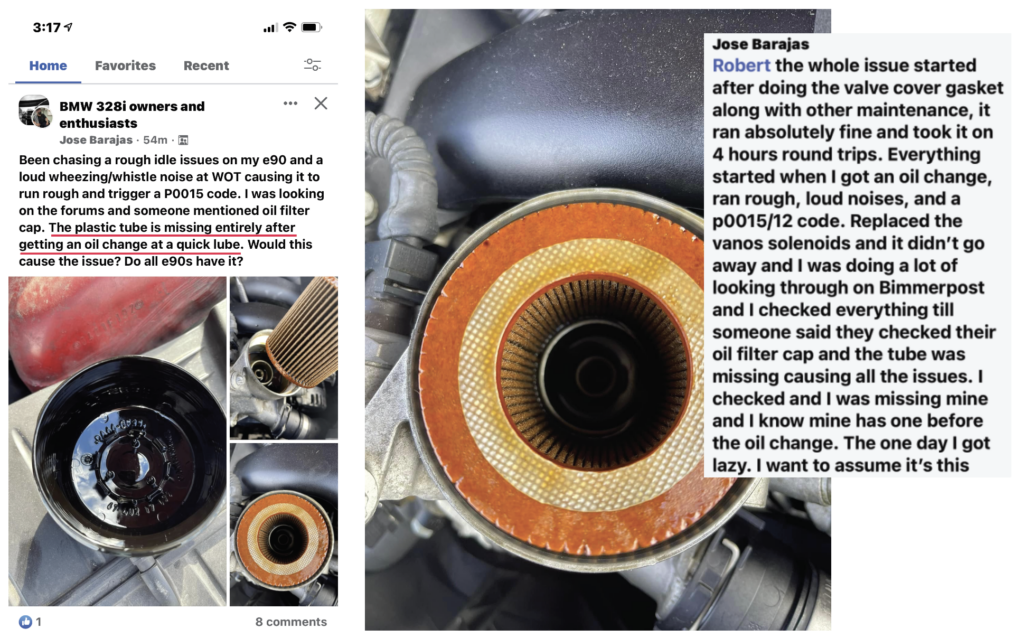

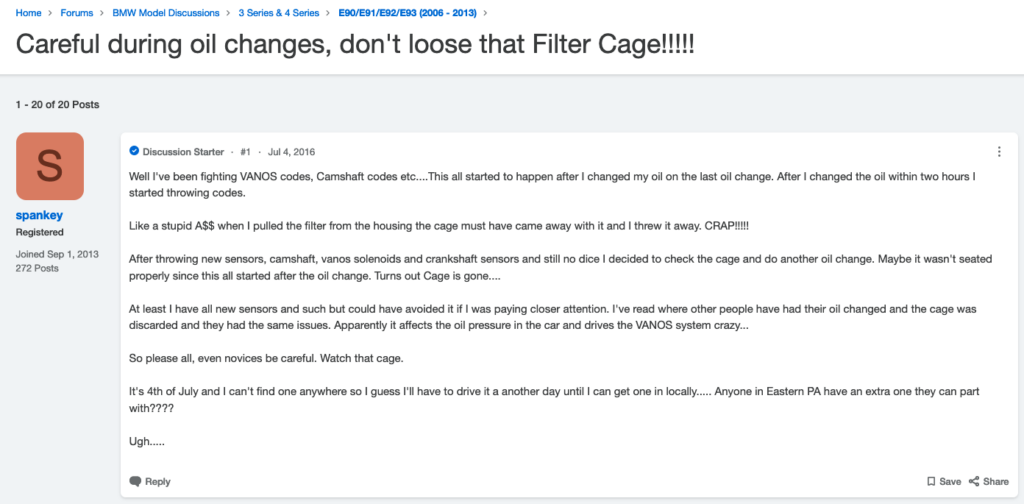

The center tube of an oil filter, whether of the cartridge variety or spin-on canister type, is a critical part of the filtration process. In the case of cartridge oil filters, the center tube looks like a plastic, cage-like assembly that is attached to the inside of the filter cap. The assembly serves two purposes: The first is to give support to the flexible filter media when the filter is under pressure. The second, is to prevent oil from flowing right back into the sump rather than circulated through the engine as it should. This tube is not supposed to be removed from the cap during oil change service and as you can imagine, if it comes out with the old filter, failure to re-install can wreak havoc on an engine. Without the center tube, the filter will collapse under pressure and lead to oil pressure problems that could make the dash warning system look like a Christmas tree. It’s likely that the camshaft position sensor and variable valve timing will be affected, and the vehicle will run terribly.

Failure to Replace the Center Tube O-ring

This is another one that highlights the importance of the center tube. When changing the oil filter, it may be tempting to reuse the small O-ring on the end of the center tube if it looks like it’s still in good shape. Please DON’T DO IT! These nitrile O-rings are only meant to last for one oil change interval because after repeated exposure to extreme heat, nitrile loses its elasticity and begins to break down. If this O-ring fails when the engine is in operation, some oil will flow back to the sump rather than through the engine. This scenario could starve the engine of enough oil to cause internal damage. We know that the tiny O-ring can sometimes be a pain in the neck to get off, but it’s not impossible with the right tools. An O-ring pick makes the job very easy.

Over-tightened Oil Filter Housing Cap

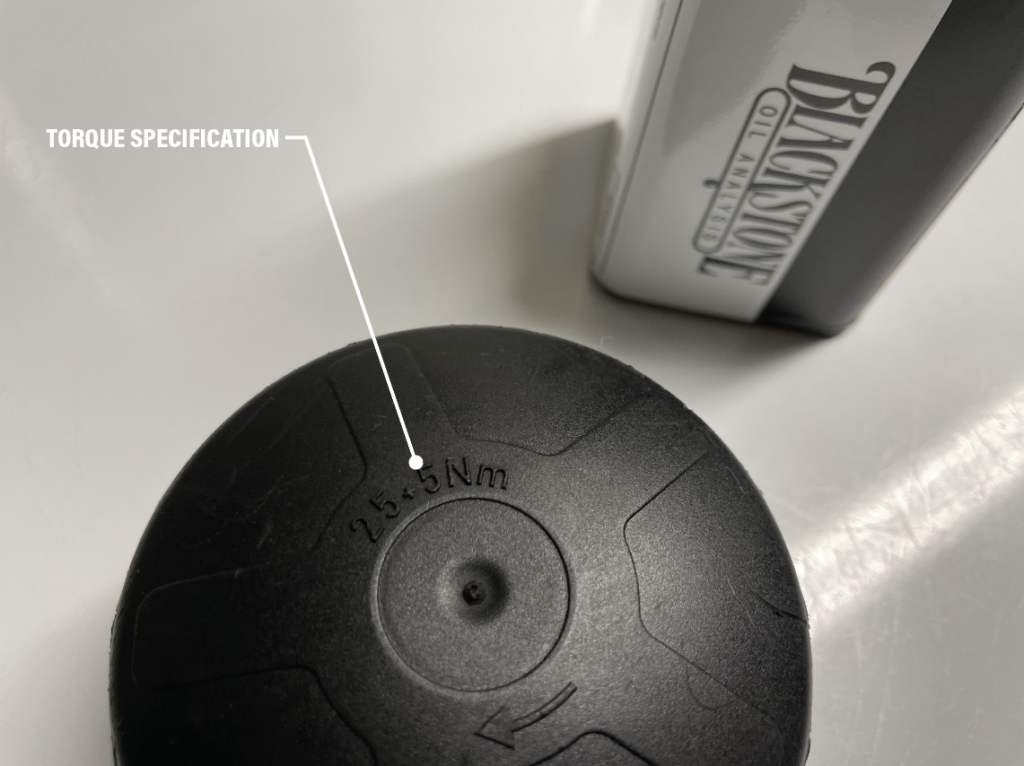

Cartridge oil filter housing caps are typically made of hardened plastic and are usually re-used from one oil change to the next. Unfortunately, like anything else that’s made of plastic, oil filter housing caps tend to break down prematurely. The most common cause of death for oil filter housing caps is over-tightening on re-installation. Over-tightening can result in cracks in the cap or pinching of the O-ring, both of which could allow leaks. Therefore, it’s very important to follow the manufacturer’s torque recommendation for tightening the cap. The cap’s torque recommendation can usually be found in the vehicle owner’s manual and is often printed right on the top of the cap.

Finishing Up the Oil Change

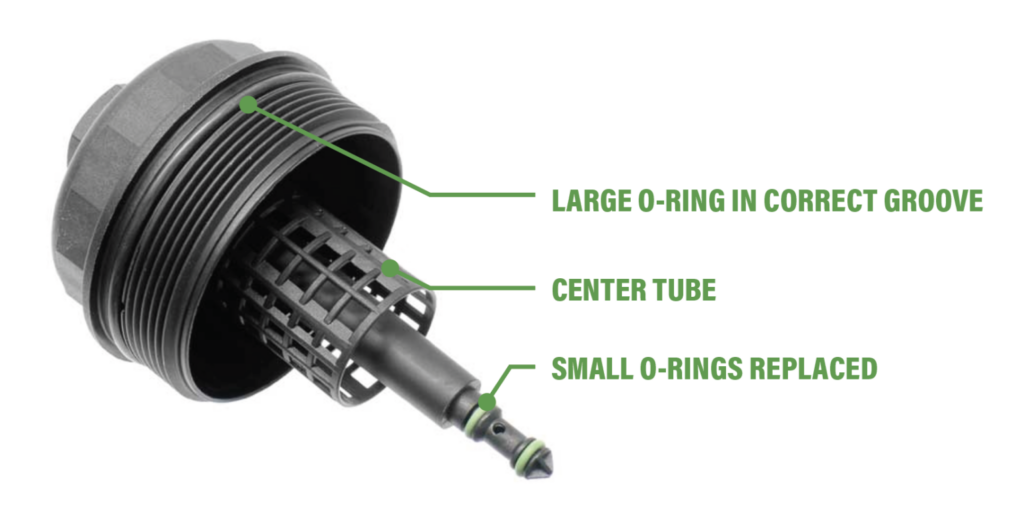

At the conclusion of the oil change service, it’s important to review the points that we just discussed and make sure each of the following boxes is checked:

  • O-rings replaced and properly installed?
  • Center tube securely in place in the cap?
  • Cap tightened to manufacturer’s recommended torque setting?

If you’re confident that you haven’t missed anything, go ahead and start the vehicle up so you can observe the filter housing while the engine is on. Cartridge oil filter replacement is not a complex task, but it does require the installer to be a little more diligent than they would be if replacing a metal spin-on oil filter. We know that some of this discussion may sound silly, but we speak from a place of experience – these mistakes do happen, and professionals are not immune. It’s our hope that these pointers will help someone avoid a disaster under the hood, either for themselves or a customer.
